Description
KEY SYSTEM FEATURES
– Use of a stainless steel strip in the guides for smooth movement.
– Design of profiles featuring both straight and curved lines.

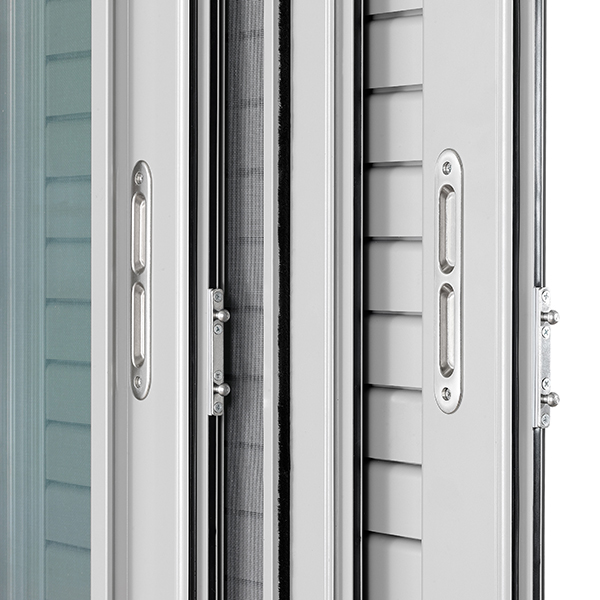

– Option to install a multi-point locking mechanism for maximum security.
– Elastic sealing block (EPDM) for guide rails in sliding and pocket systems.

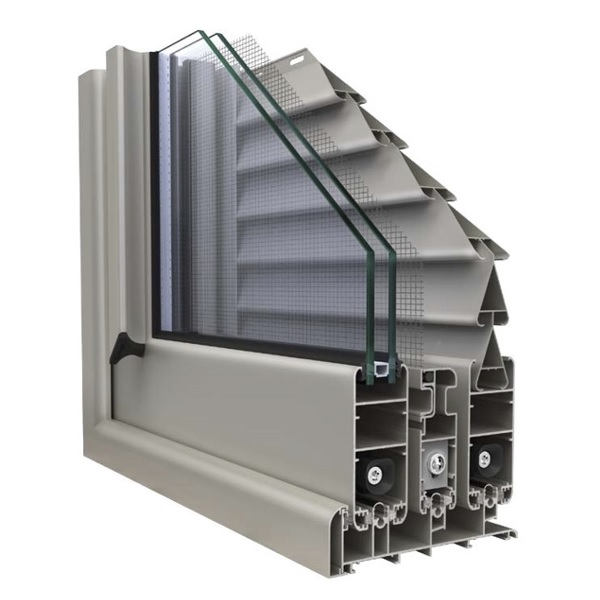

– Ability to install double glazing up to 20mm for high levels of thermal and sound insulation.
– Two options for the glass panel on the locking side: plain or with a handle, for greater resistance to stress.
– Can be combined with EUROPA 500 for complex structures.

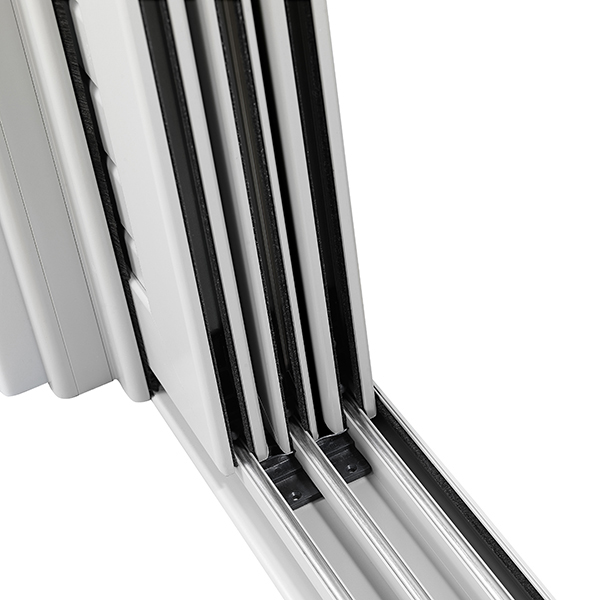

– The system features tubular and simple guides.
SPECIFICATIONS
– Aluminum alloy: AIMgSi-0.5 F22
– Hardness: 12 Webster
– Minimum paint thickness: 75μm
– Thickness of profiles: 1,3-1,4mm
– Dimensional tolerances according to: EN DIN 12020-02
– Overhead guide width: 96,6mm (two sheets)
– Recessed guide width: 124,4mm (glass-screen-shutter)
– Sheet dimensions window-shutter length: 35,4mm x 84mm
– Glass sheet glazing thickness: up to 20mm
– Maximum sheet dimension (WxH): 1,6m x 2,6m
– Maximum sheet weight: 160 Kgr

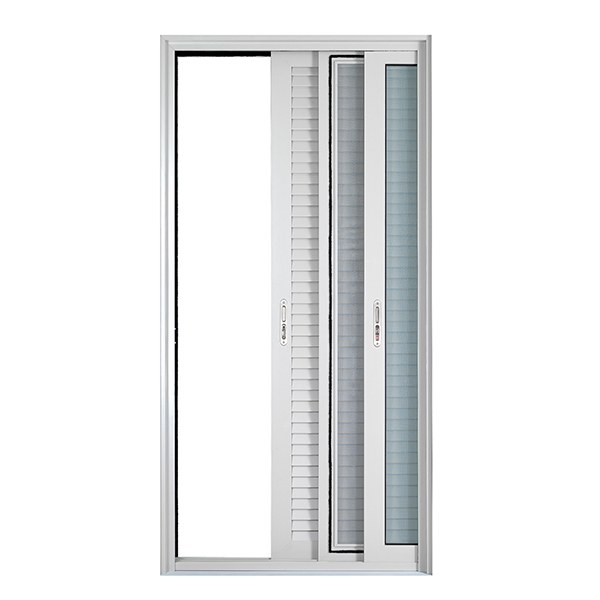

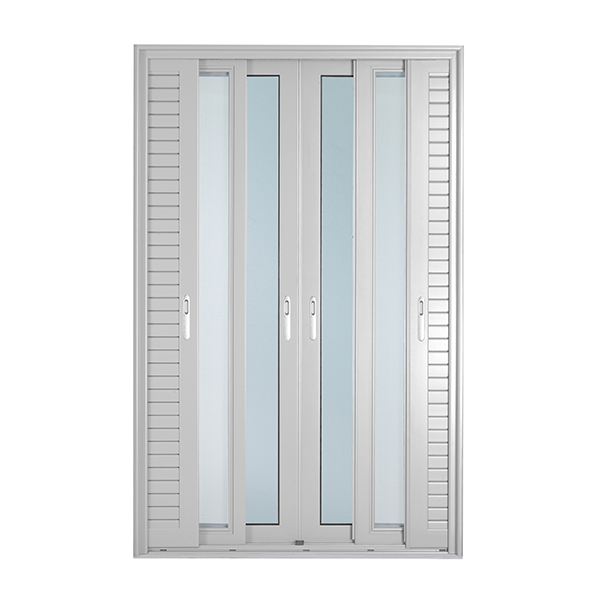

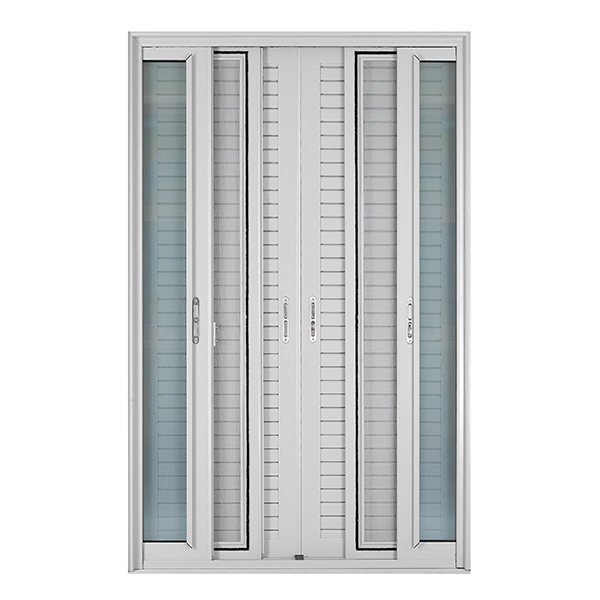

BUILDING TYPES
– Overlapping
– Recessed
– Single-leaf with Fixed Panel
– Composite Structures
